Ordering Colour: before the 20th century

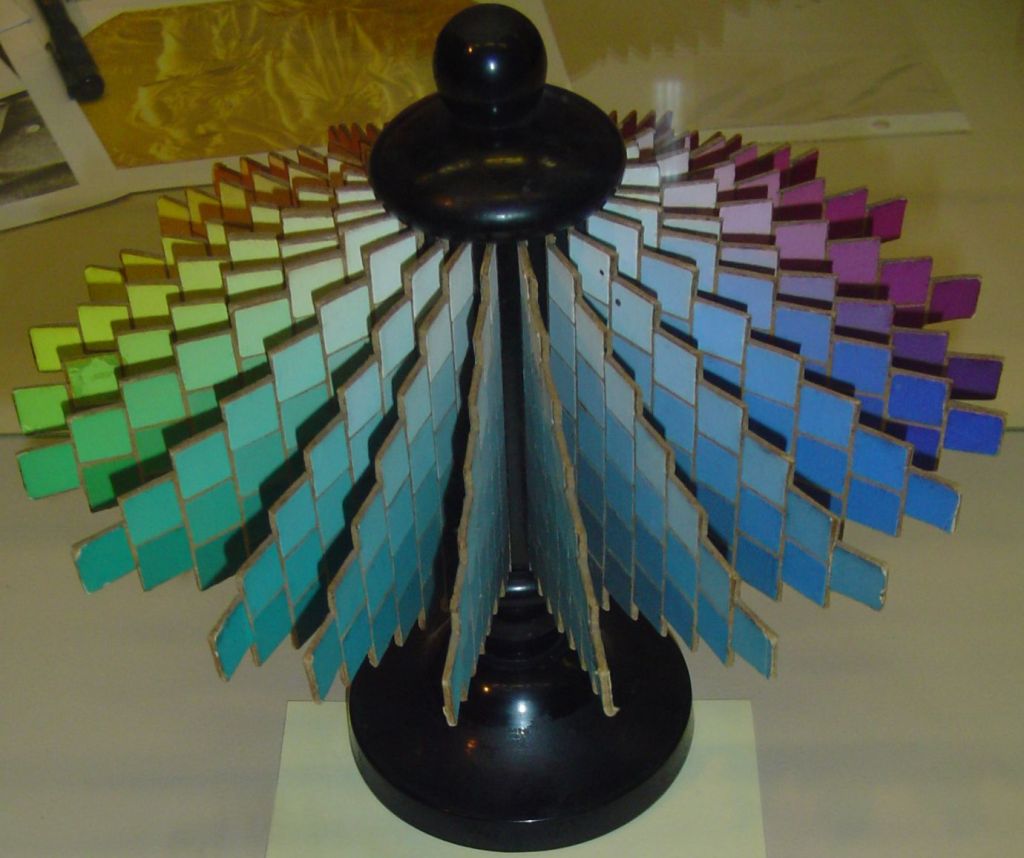

Wilhelm Ostwald (1853-1932), Colour Harmony Manual (1918, published 1942). Image by Kolossos, via Wikimedia Commons.

Colour has fascinated people for millenia. The ancient Greeks speculated how many colours were primary, and how many formed fundamental categories. Although it was much later that Newton demonstrated how white light can be separated into components of different colour, Pythagoras and Aristotle both proposed systems of colour categories by which they thought all perceived colours could be classified.

Ordering colours in this way is not a mere theoretical exercise, although it has many aesthetic uses. Once ordered, colours can be identified systematically, artists and designers can better understand how to mix colours, and more. Ordering is also an important preliminary to gaining insight into colour spaces, now central to colour reproduction and colour science more generally.

During the Renaissance, the more theoretical approaches of classical times were eclipsed by the practical experience of painters mixing pigments. In their writings on the art and craft of painting, Leon Battista Alberti and Leonardo da Vinci proposed basic chromatic colours, typically of red, blue, green, and dull yellow, from which they held that all others could be mixed. Their conclusions, though, were limited by the pigments then available and lack of sound physical knowledge.

Franciscus Aguilonius (François d’Aguilon) (1567-1617), RYB Colour Scheme (1613), https://books.google.com/books?id=Y2BDAAAAcAAJ&pg=PA40#v=onepage&q&f=false Wikimedia Commons.

In 1615, the Flemish physicist Franciscus Aguilonius, also known as François d’Aguilon, (1567-1617) was the first to propose a colour line extending from white (albus) to black (niger), passing through the primaries of yellow (flavus), red (rubeus), and blue (caeruleus). Below that are secondary combinations of orange (aureus) and purple (purpureus), with green (viridis). This was published in his six volume treatise on optics, whose title page and illustrations were designed by Peter Paul Rubens.

This ordering, with slight variations, remains the basis for the layout of colours on palettes and in most paint ranges.

During the Age of Enlightenment, ideas about colour ordering advanced again, as investigators brought in the second and third dimensions in an effort to include all the colours observed in nature, or mixed by the painter.

Tobias Mayer (1723-1762), Colour Triangle (1758), recreated by Jacques Lacombe in 1792, further details not known. Image by Mauricio Lucioni, via Wikimedia Commons.

In 1758, Tobias Mayer (1723-1762) proposed this colour triangle, recreated here by Jacques Lacombe in 1792, which is impressively modern. With the three RGB primaries forming its corners, it was the first expression of the painter’s acquired knowledge that all colours could be mixed from the three primaries plus black and white. Mayer envisaged assembling a series of triangles of diminishing size into a six-sided solid, with white and black as the polar vertices, and the three primaries forming its triangular equator, but never expressed this concept in a full model.

Johann Heinrich Lambert (1728-1777), Colour Pyramid (1772), Beschreibung einer mit dem Calauschen Wachse ausgemalten Farbenpyramide. Haude und Spener, Berlin. Wikimedia Commons.

It was Johann Heinrich Lambert (1728-1777) who first showed this explicitly in his diagram of a colour pyramid of 1772, in which the vertical axis represents lightness. It was also Lambert who first appreciated the practical value of colour order systems, pointing out their use for dyers to formulate colourants with reproducible effects.

Philipp Otto Runge (1777–1810), Colour Sphere (1810), Farben-Kugel oder Construction des Verhältnisses aller Mischungen der Farben zueinander, und ihrer vollständigen Affinität, mit angehängtem Versuch einer Ableitung der Harmonie in den Zusammenstellungen der Farben. Hamburg: Friedrich Perthes. Wikimedia Commons.

It was an artist friend of the painter Caspar David Friedrich, Phillip Otto Runge (1777–1810), who advanced Lambert’s pyramid into a solid colour sphere, in 1810. The upper views here show the outer surface of this sphere from the white and black poles. The lower views show cross-sections through the sphere: on the left, cut through the equator, and on the right a vertical section through the poles.

Unfortunately this aesthetically pleasing model has its problems, as it includes some impossible colours, and denies that each colour can be uniquely identified by a single set of values for hue, lightness and chroma.

The nineteenth century brought renewed interest in colour ordering, driven particularly by the introduction of science and technology into traditional crafts such as dyeing and tapestry manufacture.

Charles Blanc (1813-1882), Colour Star (c 1867), recreated by Al2. Image by Al2, via Wikimedia Commons.

In about 1867, the artist Charles Blanc (1813-1882) used this colour star in his educational books for artists. It differs little from the colour line of Aguilonius above, but the chemist Michel-Eugène Chevreul (1786-1889) advanced a more sophisticated colour hemisphere. Chevreul was the director of the dyeing department of the royal tapestry manufacturer of Gobelins, who daily wrestled with problems trying to achieve consistent dyeing of textiles for use in tapestry-making.

The late nineteenth century saw major influence of the German physicist and physiologist Hermann Ludwig Ferdinand von Helmholtz (1821-1894). Von Helmholtz awakened interest in the psycho- and neuro-physiology of colour, and the importance of perception as well as physics. It was actually one of von Helmholtz’s scientific adversaries, Ewald Hering (1834-1918), who brought the most important and immediate improvements in colour ordering, by applying principles of colour perception.

By the early twentieth century, many other colour orderings had been proposed, on the basis of a wide variety of theories.

Wilhelm Ostwald (1853-1932), Colour Harmony Manual (1918, published 1942). Image by Kolossos, via Wikimedia Commons.

Among them was the Colour Harmony Manual of the German Nobel Prize-winning chemist Wilhelm Ostwald (1853-1932). Having won his Nobel Prize, he decided to devote his remaining career to projects which interested him, including colour order. In 1905, he lectured in the USA on colour, and met Munsell. But the two were on different courses, and of little influence over one another. When Ostwald started to publish his proposals in a series of volumes from 1918, they formed yet another system for ordering colour.

In the next and concluding article, I will look in detail at Munsell’s contribution and system, in commemoration of the centenary of his death.


Rolf G Kuehni and Andreas Schwarz (2008) Color Ordered, A Survey of Color Order Systems from Antiquity to the Present, Oxford UP. ISBN 978 0 19 518968 1.
