What’s the time, Mr Mac? How summer time confuses macOS

Last weekend, in the UK, we put our clocks back to GMT/UTC for the winter. As I reported later, that triggered a bug in Time Machine’s backups which caused one scheduled backup to fail. Although no big deal, as the nature of the bug is obscure, and the log entries remain puzzling, it bears further examination. This article starts by looking at system clock time, and its changes.

I made one significant error in that previous article: I stripped the time zone information from the log timestamps, which confused me into thinking that all the entries used the same +0000 timezone. They didn’t, so my first task was to establish when my Mac changed its clock.

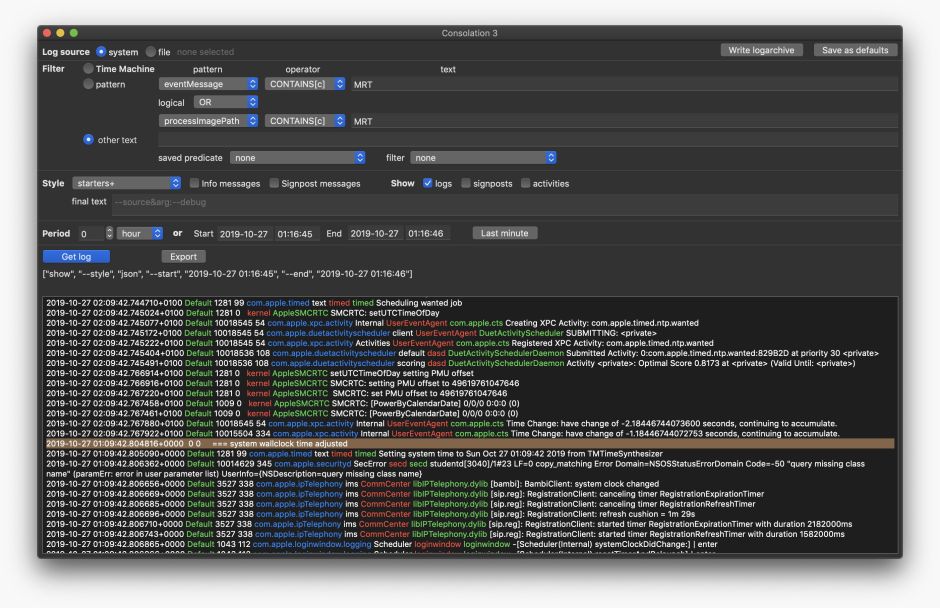

One complication here is the log show command, which I’m using indirectly through Consolation 3. If you work in Terminal, you can specify start and end times for log extracts with timezones; that’s a sophistication which, for the sake of simplicity, I have omitted from Consolation. That uses another supported time format when setting start and end times, HH:MM:SS. And when there’s a time change, that behaves oddly.

If I set the start time to 01:16:45, and the end time to 01:16:46, a period of just one second, log show returns all log entries between 00:16:45 and 01:16:46 in UTC, as it decides that the start time is +0100, but the end time is +0000. Instead of getting one second of log, you get an hour and a second. But there’s also no way of specifying a time between those without using the full time format including timezone. log show should surely use the same timezone for both start and end, which would most sensibly be that current at the time of making that call. That’s a second bug.

timezone05

When I browse all those log entries, this is the (edited) sequence for the time change. At this time of the day, my Mac is normally unused, with the display sleeping, but not the system. It’s not until 02:09:00+0100 that macOS decides to do anything about the clock change, which results from a scheduled time check despatched by DAS:
02:09:42.422018+0100 DuetActivitySchedulerDaemon 0:com.apple.timed.ntp.wanted:35EF27:[{name: MemoryPressurePolicy, policyWeight: 5.000, response: {Decision: Can Proceed, Score: 0.50, Rationale: [{[memoryPressure]: Required:2.00, Observed:1.00},]}}] sumScores:33.010000, denominator:35.510000, FinalDecision: Can Proceed FinalScore: 0.929597} 02:09:42.422032+0100 DuetActivitySchedulerDaemon '0:com.apple.timed.ntp.wanted:35EF27' CurrentScore: 0.929597, ThresholdScore: 0.680332 DecisionToRun:1

So the time service timed is run to check the time:
02:09:42.591101+0100 timed cmd,fetchTime,num,0,result,0,mach,616385934006709,tv_sec,1572138582,tv_usec,626723,delay,0.021936,dispersion,0.000214,more,1,ip,17.253.34.123,port,123,attempts,0,slept,0,use_service_port,1 02:09:42.615412+0100 timed timed cmd,fetchTime,num,1,result,0,mach,616385958316720,tv_sec,1572138582,tv_usec,652252,delay,0.024178,dispersion,0.000122,more,1,ip,17.253.34.125,port,123,attempts,0,slept,0,use_service_port,1 02:09:42.636299+0100 timed timed cmd,fetchTime,num,2,result,0,mach,616385979243209,tv_sec,1572138582,tv_usec,672021,delay,0.020790,dispersion,0.000198,more,1,ip,17.253.34.251,port,123,attempts,0,slept,0,use_service_port,1 02:09:42.658154+0100 timed timed cmd,SYNC,rtc_s,57863648.357542999,unc_s,0.000500000,mach,616385979717240 02:09:42.658229+0100 timed Received time Sun Oct 27 01:09:42 2019±0.01 from "NTP"

At this moment, the clock time reflected in log entries is still in summer time +0100, but as it’s now after 02:00:00, that should be set back an hour. Corrections are made first to the SMC:
02:09:42.766914+0100 kernel AppleSMCRTC setUTCTimeOfDay setting PMU offset 02:09:42.766916+0100 kernel AppleSMCRTC SMCRTC: setting PMU offset to 49619761047646 02:09:42.767220+0100 kernel AppleSMCRTC SMCRTC: set PMU offset to 49619761047646

Following those, the system time is changed, and the log timestamps switch to GMT/UTC +0000:
01:09:42.804816+0000 === system wallclock time adjusted 01:09:42.805090+0000 timed Setting system time to Sun Oct 27 01:09:42 2019 from TMTimeSynthesizer

After that, a series of times are changed to match, for example
01:09:42.807196+0000 CommCenter #I Got significant time change notification 01:09:42.808738+0000 KnowledgeMonitor Time changed; reevaluating sunrise/sunset times

What I find puzzling here is that, knowing that summer time ended at 02:00:00+0100 that morning, macOS left it to a routine scheduled time check, which occurred more than 9 minutes later, to perform that time change. Given the importance of synchronised times in some network operations, for example, this looks like a third bug to me. When such time checks were scheduled by cron, I doubt that they’d be left unattended to for so long.

So how does this fit with the observed error in Time Machine backup? That’s where things get even more confusing. The log entries for those failed snapshots read:
02:01:27.947839+0100 backupd TimeMachine Failed to create APFS snapshot with name 'com.apple.TimeMachine.2019-10-27-010127' on volume '/Volumes/External2', error: Error Domain=NSPOSIXErrorDomain Code=17 "File exists" 02:01:27.948013+0100 backupd TimeMachine Failed to create APFS snapshot with name 'com.apple.TimeMachine.2019-10-27-010127' on volume '/', error: Error Domain=NSPOSIXErrorDomain Code=17 "File exists" 02:01:27.948727+0100 backupd TimeMachine Failed to create APFS snapshot with name 'com.apple.TimeMachine.2019-10-27-010127' on volume '/Volumes/External1', error: Error Domain=NSPOSIXErrorDomain Code=17 "File exists"

Note that those log entries were written when the system clock was still using summer time +0100, and are timed more than 8 minutes before macOS performed the time check which resulted in changing the system clock. Yet at that time, backupd was assigning names to the snapshots which had already been set back to GMT/UTC +0000, and that is how the name collision occurred (the original bug). So the fourth bug is that the algorithm for naming these snapshots is not based on system time, but something different, which isn’t unique and can allow a collision to occur.

Finally, there’s still another twist to this story: the apparent discrepancy between my two utilities Consolation 3 and T2M2. As Ingo pointed out, as they both use the unified log to derive their information, they should have been in agreement as to how many backups should have been performed over this period.

However, the two apps differ in how they handle times obtained from the unified log. Consolation delivers the exact strings for the datestamp obtained from the log show command, with whatever timezone adjustment they include. T2M2 works with the times it obtains from the log, so converts them into macOS internal Date values, which account for timezone changes, and allow it to calculate intervals between backups, and so on. So when the timezone changes, you may see small discrepancies between their output. For the whole of the rest of the year, that shouldn’t be the case.

To summarise the bugs which this has revealed:

backupd should handle snapshot name collisions safely, so as to avoid any backup failing.
log show should handle HH:MM:SS formats for start and end times consistently, using the same timezone even when applied across timezone changes.
Scheduled summertime/DST changes should should be applied to system time at the correct time of 02:00:00, rather then being despatched when convenient by DAS.
backupd should name snapshots so as to ensure that name collisions cannot occur, e.g. to append the timezone, or to use UTC/GMT rather than local time.

The above applies to macOS 10.14.6 Mojave, although I strongly suspect that the issues are identical in both High Sierra and Catalina.

Perhaps it is time to replace Occam’s Razor, or the law of parsimony, with a principle more appropriate to modern software and operating systems: bugs will necessarily be multiple. If you think you’ve found one, you can be fairly confident that you’ll find more. In a final twist of irony, to prove that law, when I was checking the source code of Consolation 3, I found no less than three completely unrelated bugs, which are now fixed in version 3.4.

Many thanks to Michael Tsai @mjtsai and Ingo for their helpful comments which made me dig deeper. At least I’ve made this hole significantly bigger and buggier.

6Comments

Add yours

1

Ingo on November 2, 2019 at 11:00 am

So, if the option „—timezone…“ is not specified in the ‚log show‘ command, then the offset of the local timezone is applied to the timestamps but after a clock change there may be a delay in switching the offset to the valid value.
However if „—timezone local“ is present I do not observe that delay. Already the first entry recorded after or beginning with 01:00 UTC has got the appropriate timestamp.

LikeLiked by 1 person
- 2

  hoakley on November 2, 2019 at 12:00 pm

  What time did the system change the clock then?
  Howard

  LikeLike
- 3

  hoakley on November 2, 2019 at 4:07 pm

  Ingo,
  I don’t know what datestamps you’re seeing with that option, but if it conforms to the man page, all the timezones are set to the current one. So you don’t actually see when the log registers the timezone change, and shouldn’t do. Again, according to the man page, the unified log doesn’t change local time until new entries are written to the log files. If it took an idle iMac Pro all those minutes to get round to writing those log entries to its blisteringly fast internal SSD, there’s a carrier pigeon involved in the log system somewhere!
  The critical question here is when the system made its clock change, as that is what is reflected in the ‘uncorrected’ JSON-dumped log entries. And as I show in the entries above, my iMac Pro’s system didn’t make that change until it was despatched many minutes after the time that adjustment should have taken place. And at a time when one part of macOS was clearly using adjusted times, but much of it wasn’t. Perhaps this isn’t surprising given the different clocks running in macOS, but such a long delay before the adjustment was applied isn’t good in a $4000 computer. It’s even clear here why that happened – because the timed task has handed over to DAS to schedule when it saw fit, when it was bored and had nothing better to do.
  Howard.

  LikeLike
4

John Lockwood on November 2, 2019 at 11:18 pm

@hoakley
Have you bothered to report these bugs to Apple?

Sadly I get the impression this is a less useful route these days, especially since they discontinued the developer bugreport site in favour of the mere user level Feedback assistant.

LikeLiked by 1 person
- 5

  hoakley on November 2, 2019 at 11:25 pm

  Not yet – we’re still debating them. As they are likely to occur so rarely, I doubt that they’d survive any triage process anyway. As they don’t cause anything particularly widespread or serious, I think they’d just clutter the database. But maybe we’ll agree something different during the discussion.
  I’ve dumped the log for the period into a logarchive anyway, as it’s unusual to get such insight into a clock change.
  Howard.

  LikeLike
6

What's Happening In Forensics - Nov 4, 2019 - Forensic Focus on May 25, 2020 at 8:11 pm

[…] The Eclectic Light Company talks about how summertime confuses Mac timestamps. […]

LikeLike
