PDF without Adobe: 6 Quartz and Preview

Before even suggesting that you should dip your hand into your pocket and pay for software to work with PDF documents, I should explain what you get free with macOS. You may not need to buy anything at all.

Creating PDF

Because support for PDF as a format is built very deeply into macOS, there’s a great deal you can already do before you get any additional apps. Creating PDF documents is supported in every app which supports printing. Printing effectively takes place by the app generating the document to a page-based virtual display to create a PDF intermediate, which is then converted by the printer driver into the data required by the print engine. When using the standard print dialog, at the bottom left is a popup menu offering PDF services.

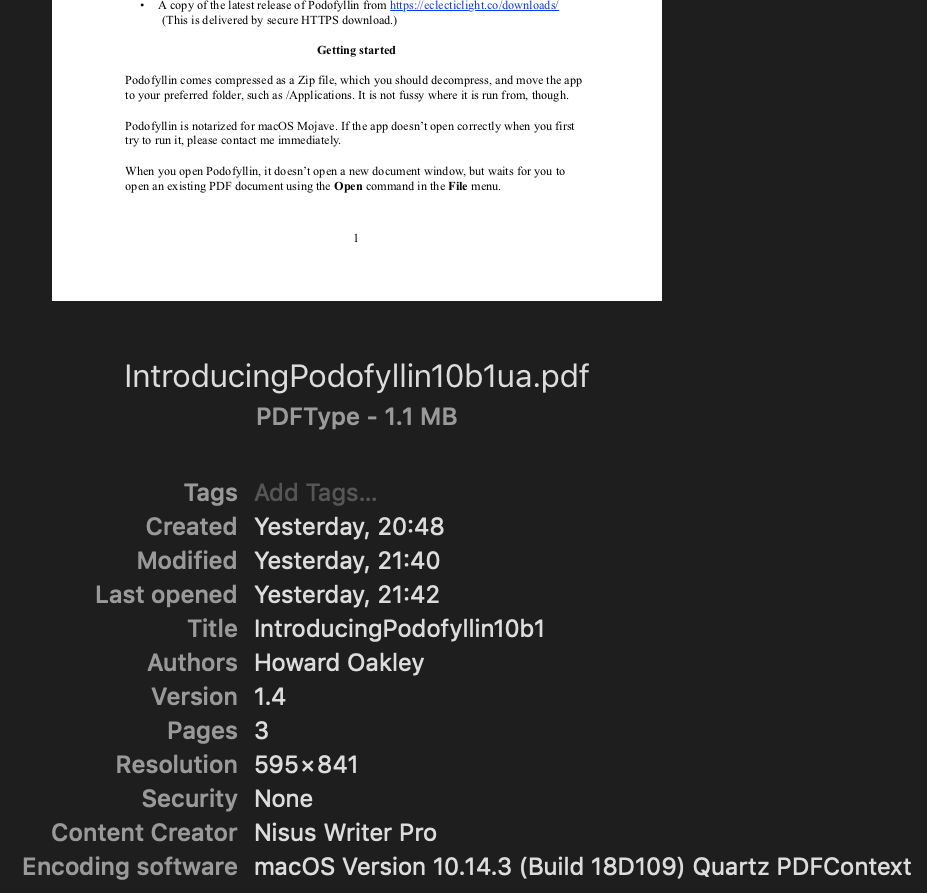

Some items in that menu are added by macOS and its bundled tools. Others are added when they are installed in a Library/PDF Services folder. As they intercept the normal printing process, they use the built-in PDF engine, and as far as I’m aware cannot offer any options. PDF documents which are created using PDF Services are shown in their metadata – now conveniently displayed in the Finder – as being encoded by “macOS Version 10.14.3 (Build 18D109) Quartz PDFContext”, with the Content Creator as the app from which they were printed.

pdfmacos01

Many apps, including Safari most notably, offer better options which are specifically tailored to producing PDF documents. These can write the PDF in compliance with variant standards, such as PDF/A for archival purposes, and generally still follow the same virtual imaging model and use the Quartz PDF engine in macOS.

Apps which are specifically intended for high-quality document creation, like QuarkXPress, put a range of options into an Export… menu command. These can save the document so that it is compliant with variant specifications such as PDF/A, PDF/X, and PDF/UA, but require the app to provide substantial additional code to process the data generated by the Quartz engine. This is normally integrated into that app, and not available to other apps. In some cases, they may even provide their own PDF engine – QuarkXPress, for example, signs its documents as using “QuarkXPress(R) 14.21” rather than Quartz.

Working with PDF

The main user interface to macOS PDF features is the bundled Preview app, which has surprisingly rich facilities for working with PDF documents which aren’t all obvious. It is also the only bundled tool which can convert documents from another format and save them in PDF: Preview will open PostScript files, render them into a virtual display, and offer that as a PDF document. This was one task which was originally the preserve of Adobe Distiller, and a key selling point of early Adobe PDF products. Although converting PostScript to PDF is much less common since the introduction of Mac OS X, it remains a valuable feature which few users know about.

pdfmacos02

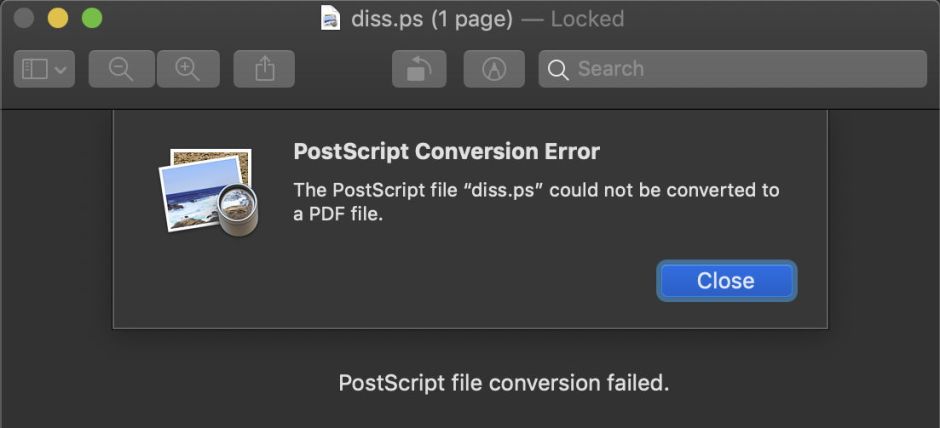

Unfortunately, old PostScript files often have problems which stop Preview and Acrobat from converting them successfully. When that happens, it is usually impossible to fix.

Preview contains extensive support for annotating PDF documents, and will embed those as annotation objects within the document source, changing the PDF file. Included with those is support for form-filling and signature. It can also rotate pages and re-order them, but Preview cannot edit the contents of existing pages, other than their annotations.

PDF variants

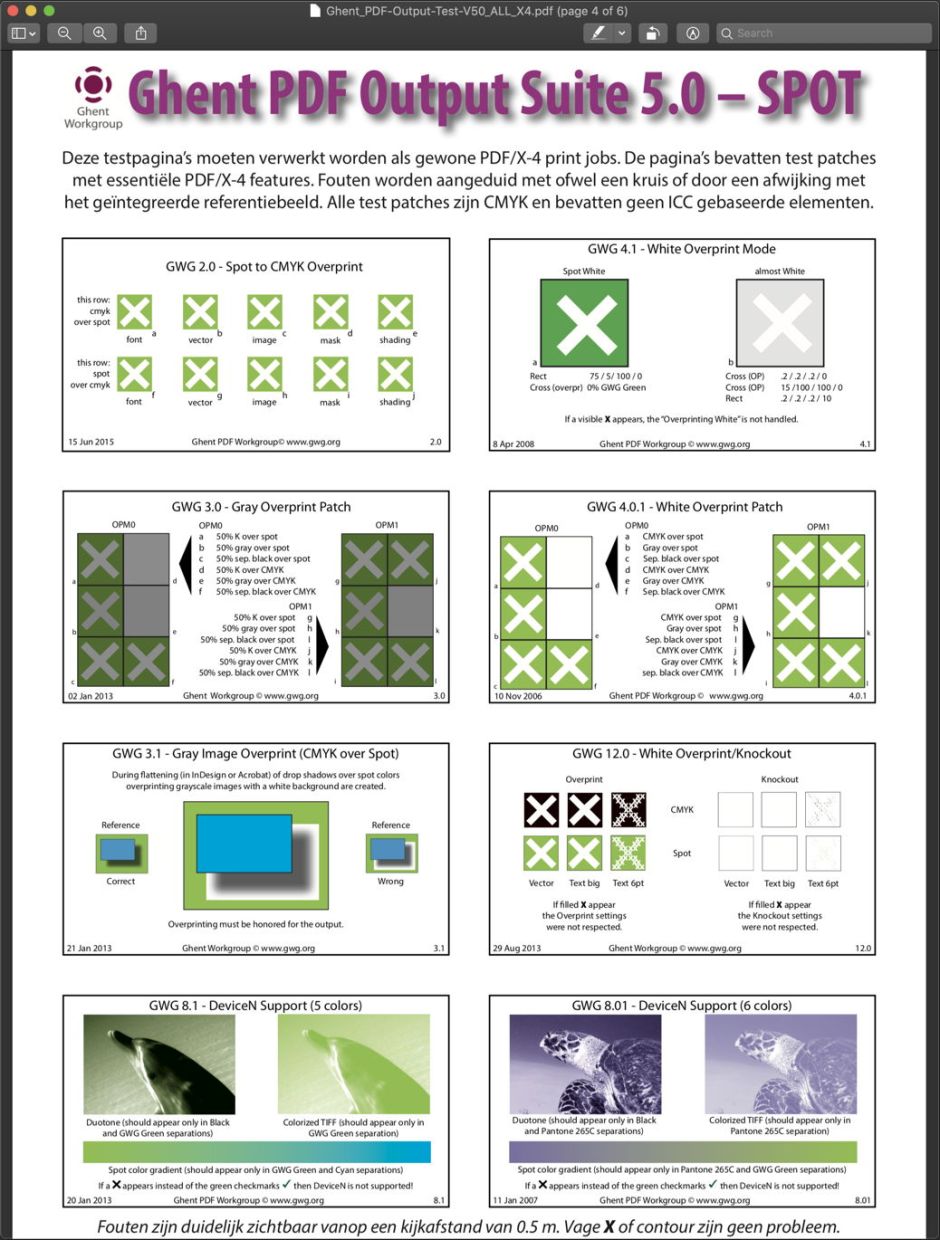

As with the Quartz engine itself, Preview is a general PDF tool, and not intended to provide specific support for PDF variants. When you open a PDF/A document, it recognises that and locks the file so that the original cannot be altered. It doesn’t fare at all well in complying with pre-press variants such as PDF/X-4, though. In the test page below, which exercises some of the support for spot colour in the PDF/X-4 standard, graphics containing an X are failures.

pdfmacos03

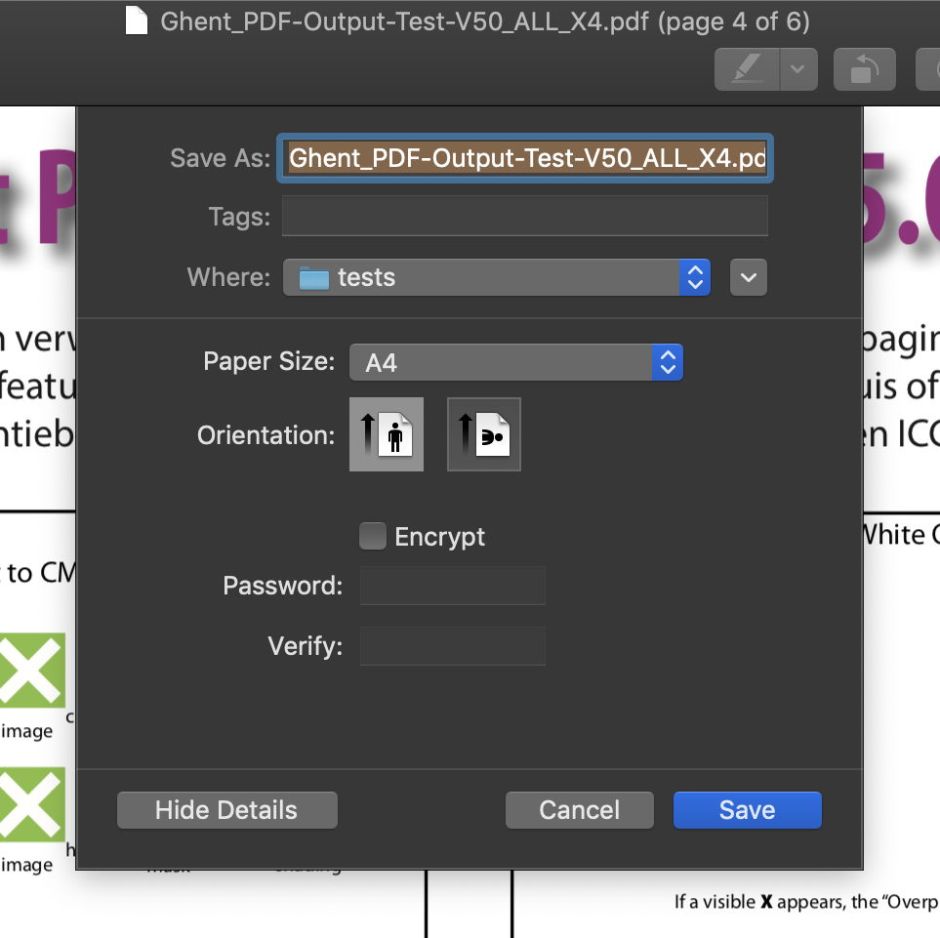

You can’t save an existing PDF in any variant either: the options available in Preview’s Export as PDF… command are very basic indeed, and plain Quartz in their nature.

pdfmacos04

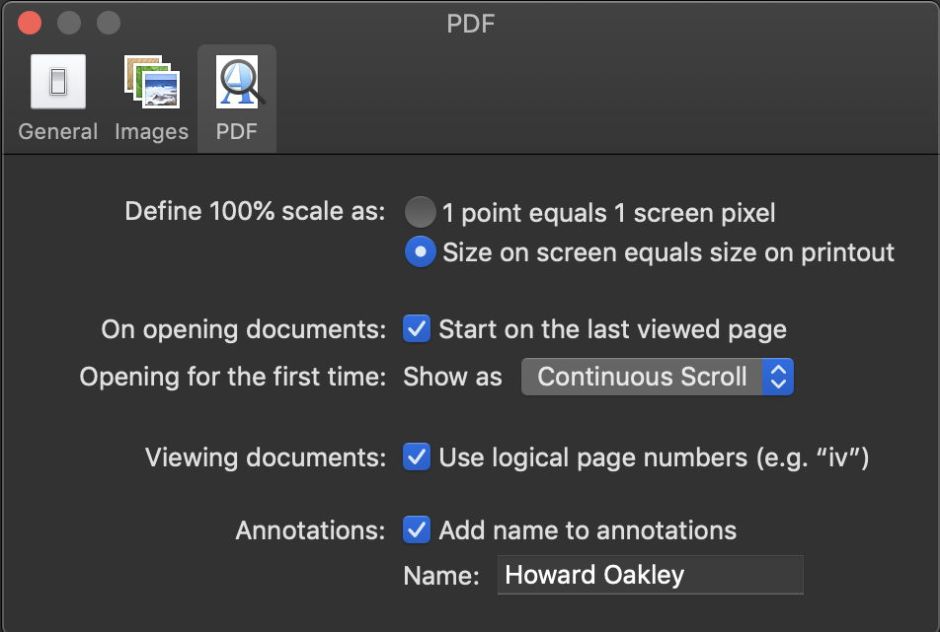

Its app-wide preferences for PDF display and editing are similarly very limited.

pdfmacos05

Preview is thus a good general purpose PDF viewer with features that enable users to annotate, complete forms, sign, and perform page manipulation. You can select content to copy and paste into other apps; this uses Rich Text format as far as possible, and includes images too. It can’t export whole documents to another format, such as RTF or Word. If you want to process PDF complying with variants including PDF/A, PDF/X and PDF/UA, then Preview doesn’t handle them in any special way, and has only limited value as a reader for them.

Quartz engine

For the developer, though, the Quartz PDF engine in macOS offers a great deal more, if they’re prepared to make the effort to use its full features. PDFKit, as seen in the previous coding demonstration here, provides high level features comparable to those in Preview, which includes page manipulation and annotations. To support editing of page content and handle variants, the developer has to go into the weeds of CGPDFDocument and its related classes, which are powerful and, being so long-established in macOS, still comparatively well-documented.

This establishes the baseline for PDF features. In coming articles I will look at what third-party tools can offer. These include PDFpenPro 10, PDF Expert, Adobe Acrobat Pro DC (version 19), and Skim.

9Comments

Add yours

1

Adam C. Engst on February 16, 2019 at 7:11 pm

Preview is indeed an excellent free tool for reading and doing basic manipulations on PDF. I co-authored a book about it (“Take Control of Preview”) a few years back and just finished updating it to over the Mojave version of Preview.

Unfortunately, Apple has introduced a number of bugs such that things that used to work in the previous versions no longer do. PDF annotations are particularly buggy now, and Apple removed a number of features. You used to be able to edit annotations in the sidebar; no longer. The Annotations pane of the Inspector used to well, work—it doesn’t even let you sort columns anymore, much less add notes to annotations. Even highlighting with the marker often shows the annotation in the sidebar missing the final letter of the selected text—a classic off-by-one error. Perhaps most egregious is that the Contact Sheet view that is great for rearranging pages in a PDF now shows thumbnails as squares, distorting the aspect ratio of every page unless your document happens to be square.

The update to the book should be available at the Take Control site in a few weeks; it documents everything Preview can (and now can’t) do.

https://www.takecontrolbooks.com/preview

LikeLiked by 1 person
- 2

  hoakley on February 16, 2019 at 11:56 pm

  Thank you, Adam.
  I look forward to the new version.
  Howard.

  LikeLike
3

Tony on February 18, 2019 at 10:27 pm

When you come to looking at paid apps, don’t neglect Affinity’s Designer program. This capable, and modestly priced, vector graphics package has a PDF import ability. I was (pleasantly) surprised at how well it can disassemble a PDF file, making it highly editable. You can, of course, then re-export as PDF.

The team at Affinity also seems to have an old-fashioned approach to testing and bugs (lots and few, quickly fixed, respectively).

LikeLiked by 1 person
- 4

  hoakley on February 18, 2019 at 11:03 pm

  Thanks, Tony. Yes, that and QuarkXPress which can disassemble long and large PDF documents into an editable document. They’re good candidates for those who need to edit PDF properly.
  Howard.

  LikeLike
  - 5

    Tony on February 18, 2019 at 11:22 pm

    Bit of a price difference, I think!

    LikeLiked by 1 person
6

Ben on March 13, 2019 at 5:57 pm

I hope you won’t mind me mentioning my own suite of PDF tools, written in python using PDFKit. These include PDF Services, Quick Actions and shell scripts. It was my own desire for “Life after Adobe” that let to me creating them.
https://github.com/benwiggy/PDFsuite

LikeLiked by 1 person
- 7

  hoakley on March 13, 2019 at 9:54 pm

  Thank you for that, Ben – it looks very useful indeed.
  Howard.

  LikeLike
8

Ben on March 14, 2019 at 7:48 am

Preview could be a fantastic app, but it is much less than it could be, given the capabilities of PDFKit. Last time I checked, it did NOT open PDF/A as read-only. It has limited AppleScript support. It’s own Bookmarks are not in the PDF spec, and it can’t create a standard Table of Contents (outlines), despite PDFKit having the feature.
There’s also ColorSync Utility, which could be an amazing piece of kit, but has suffered from interface flaws since 10.0.0, which render it difficult to use.
Oh: you say that Safari can save as PDF/A? How?
I’ve only just found this series of articles, but very interested in them. I’m following your steps for producing an app!

LikeLiked by 1 person
- 9

  hoakley on March 14, 2019 at 11:21 am

  Thanks.
  Although Preview does have its shortcomings and could so easily be improved, many users are unaware of how much it can do beyond being a simple PDF (and image) viewer. It is, for instance, one of the few apps still to distill PostScript into PDF, something that even the paid macOS apps (short of Acrobat itself) usually can’t. It’s also quite competent at filling basic Acrobat forms, although not those which use more advanced PDF features.
  I didn’t say that Safari can write to PDF/A, but that it provided “better options which are specifically tailored to producing PDF documents” – most notably in its Export as PDF… command rather than having to print to PDF (the context from the previous para).
  And some apps beyond specialists like Adobe Acrobat Pro and QuarkXPress do now offer the ability to write straight to PDF/A and other standards without having to use their own PDF engine, although if you need to work with variant standards you’ll normally need something more specialised to do so.
  I wish you success with the app.
  Howard.

  LikeLike
